P940P-1

FOOT PUMP

Foot-pump with integral three-way directional control valve for supplying single-acting cylinders.

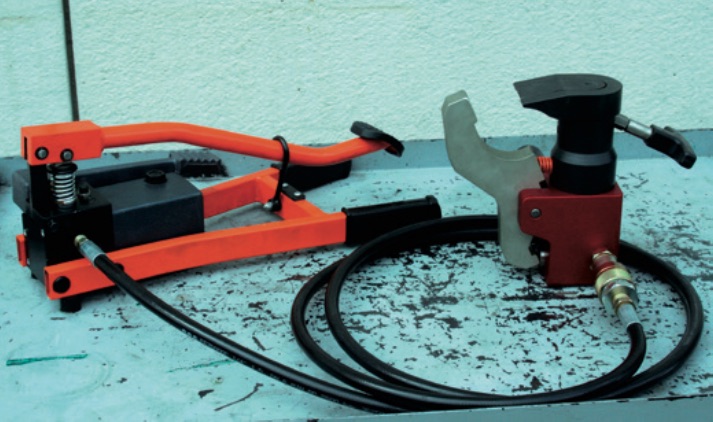

A compact, portable, low-cost device equipped with 0.4 litre tank and having maximum operating pressure of 700 bar. Pedal-operated, it DOES NOT REQUIRE COMPRESSED AIR; it cuts out when the maximum hydraulic pressure is reached, keeping the circuit pressurised. Fitted with external relief valve for overload protection, it is used to operate lifting, pulling and pushing cylinders.

Hydraulic system optional accessories are available.
